Right angle magnetic connector square 6pin male and female electrical pogo pin

모든 범주

정밀 전환 부분

저희와 연락

Ms. KIKI

union@upetech.net

13434524996

upetech

지금 연락하세요

Right angle magnetic connector square 6pin male and female electrical pogo pin

브랜드 이름:	UPE
모델 번호:	VIC1202A /VIC1202B
모크:	5000
가격:	$1-$5
포장 세부 사항:	PE 가방
지불 조건:	티/티

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

ISO9002

문서:

VIC1202A.pdf

이름:

전자기 연결 장치

재료:

THN, 황동, SUS304, NDFEB N52

전단력:

80g ± 20g

일하는 Storke:

1.0mm

현재의:

5.0A

휘장:

12V

자기력:

600g

기계적 수명:

50000 사이클 분

접촉 저항:

50mΩ 최대 (PIN)

소금 스프레이 테스트:

48h

공급 능력:

5KPCS/일

강조하다:

right angle magnetic connector 6pin

square pogo pin connector

magnetic electrical connector male female

제품 설명

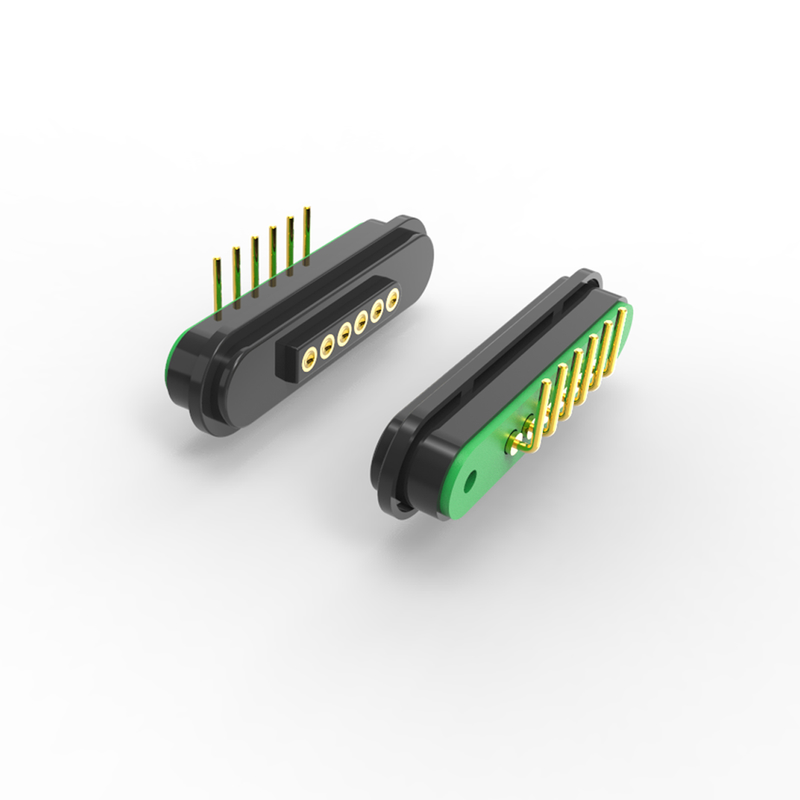

Right Angle Magnetic Connector Square 6pin Male and Female Electrical Pogo Pin

Right angle magnetic connector square 6pin male and female electrical pogo pin. Gold-Plated, HTN Housing, NdFeB Magnet, 12V/5A, UL94 V-0

UPE is a professional magnetic connector & magnetic cable connector manufacturer. We have our own professional designers to meet any of your requirements and provide magnetic connector customization service. Different magnetic pogo pin connector products and solutions can be designed according to different customer needs.

Key Features

Right-angle design: Saves space for PCB mounting in compact devices.
6-pin configuration: Supports power (12V/5A) + data signals.
Strong magnetic coupling: ≥600G holding force (NdFeB magnet).
High durability: 50,000+ mating cycles, UL94 V-0 flame-retardant.
Anti-short-circuit design with clear polarity marking.

Materials & Construction

Component	Specification
Contacts	6 pins (male/female), brass base with gold plating (≤50mΩ resistance).
Housing	HTN + 30% filler, UL94 V-0 black (high-temperature resistant).
Magnet	NdFeB (neodymium) with optional epoxy coating (passes 48hr salt spray test).

Mechanical & Electrical Properties

Parameter	Value
Spring Force (per pin)	80g ± 20g @ 1.0mm deflection.
Magnetic Force	≥600G (male-female adhesion).
Rated Voltage	12V DC.
Current Rating	3A continuous / 4A peak.
Contact Resistance	≤50mΩ per pin.
Operating Temperature	-30°C to +85°C.

5Pin Male Connector Technical Drawing (Key Dimensions)

5Pin Female Magnetic Connector Technical Drawing (Key Dimensions)

Why Choose UPE

Fast prototyping: 3-5 days for samples
Cost-effective: Competitive MOQ pricing
Quality assurance: 100% automated testing
High-tech production with precision engineering
Systematic quality control for consistent performance

Advantages of Magnetic Connector

Automatic adsorption connected experience; Easy operation
Uses a magnetic interface to remove the device easier
High life cycle. It supports 50,000-300,000 reattachment life times
Easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68)
Support a high current (3A-20A), faster recharge
Excellent corrosion rating (48H-120H) meet the harsh environments
Shape customized to meet with product shape matching, improve product selling point
Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish the direction (user-oriented and user-friendly)
Excellent scalability interface, Can be achieved (Power Signal Video Audio Jack Etc)
Development time is short, low-cost mold for customization
Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic Connectors Application
