3pin magnetic connector 3A male female pogo pin charger terminal

브랜드 이름:	UPE
모델 번호:	VIC0350A/VIC0350B
모크:	5000
가격:	$1-$5
포장 세부 사항:	PE 가방
지불 조건:	t/t

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

ISO9002

문서:

VIC0350A.pdf

이름:

전자기 연결 장치

자기력:

600g

기계적 수명:

50000 사이클 분

재료:

황동, NDFEB, SUS304

전단력:

80g ± 20g

일하는 Storke:

1.0mm

현재의:

3.0A

휘장:

12V

작동 온도 ::

-25℃ ~ +60℃

접촉 저항:

50mΩ 최대 (PIN)

공급 능력:

5KPCS/일

강조하다:

3pin magnetic connector charger terminal

3A pogo pin magnetic connector

male female magnetic charger connector

제품 설명

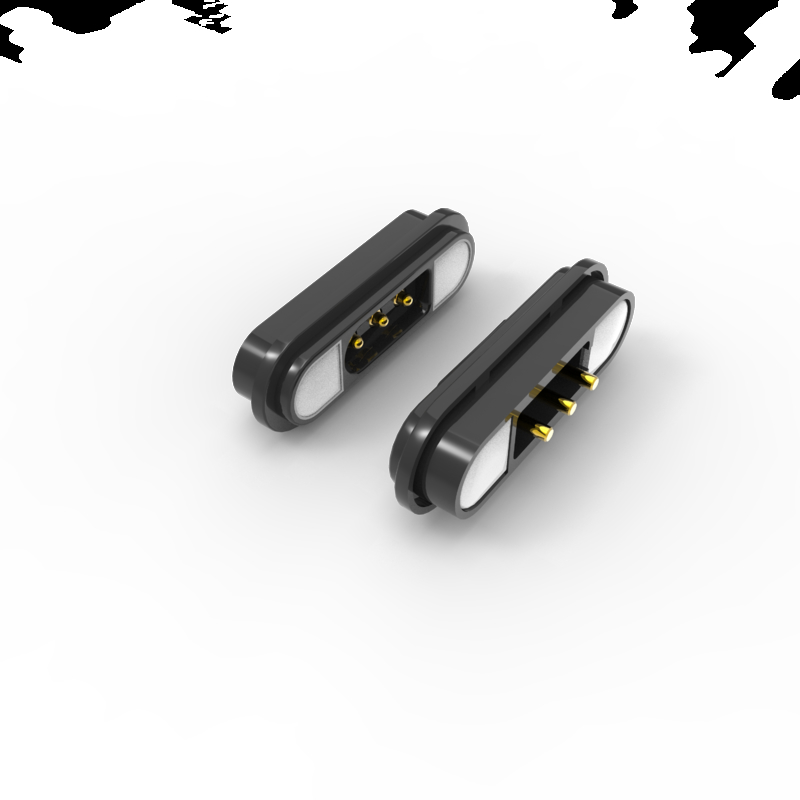

3pin Magnetic Connector 3A Male Female Pogo Pin Charger Terminal

3pin magnetic connector 3A male female pogo pin charger terminal.

UPE - Professional Magnetic Connector & Cable Manufacturer | Custom Solutions

UPE stands as a premier manufacturer at the forefront of connectivity technology. We specialize in the design and production of advanced magnetic connectors and high-performance cable assemblies.

Male Magnetic Connector

Materials:

Insulator: HTN+30% UL94 V-0 black
Magnet: Neodymium iron boron

Mechanical:

Contact force: 80g±20g at 1.0mm working stroke
Male and female adsorption Life test: 50,000 cycles
Adsorption capacity test: The parent docking adsorption is more than 600G

Electrical:

Reference voltage: 12V
Continuous working current: 3.0 A
Contact static impedance of the needle: 50mΩ Max (PIN)
High voltage test: AC1000 V 0.5mA 3SEC / DC 1000V 0.5mA 3 SEC

Environmental Performance:

Environmental Test: Salt Spray 48 hours

Product Application (not limited to the following):

The PCB board can be soldered with a plug-in
After soldering, the board can be molded and coated
The PCB board can be connected with a terminal
The mold can be molding and injection molding
The wire can be directly soldered

Female Magnetic Connector

Materials:

The yellow metal needle part is gold-plated with brass surface
The plastic material is HTN+30%UL94 V-0 black, which can withstand high temperatures
The magnet adopts high-performance permanent magnet neodymium iron boron

Electrical Properties:

Reference voltage: 12V
Continuous working current: 5.0 A
Contact static impedance of the needle: 50mΩ Max (PIN)
High voltage test: AC1000 V 0.5mA 3SEC / DC 1000V 0.5mA 3 SEC

Product Introduction:

The product adopts environmental protection materials, ROHS, REACH
The attraction force of the magnetic male and female docking is more than 600G
Product anti-short-circuit structure design
Polarity and electrical direction are clearly identified
The magnet can be coated with epoxy resin, and the salt spray test can pass 48 hours
The pin feet are fixed on the PCB board, and the pin spacing size is stable

Product Application (not limited to the following):

The PCB board can be soldered with a plug-in
Mold molding and injection molding

3Pin Male Magnetic Connectors & Female Magnetic Connector Parameter

Name	Magnetic Connector
Type	Male/Female
Pin	3pin
Color	Black
Pogo pin	Brass 0.125 um Au over 1.5um~2.5um Ni
Female pin	Brass 0.125 um Au over 1.5um~2.5um Ni
Shell	SUS304
Insulator	HTN+30% UL94 V-0 black
Magnet	NdFeB N52 1.5um~2.5um Ni
Spring force	80g±20g, at 1.0mm working stroke
Mechanical life	50000 cycle Min.
Magnetic force	600g
Current	3.0A Max
Voltage	DC12V
Contact resistance	50mΩ Max (PIN)
Operation Temperature	25℃ to +60℃
Salt spray test	48H
Certification	ROHS or REACH compliant product
Test	100% open and short test

3Pin Male Magnetic Connector Technical Drawing

3Pin Female Magnetic Connector Technical Drawing

Advantages of Magnetic Connector:

Automatic adsorption connected experience; Easy operation
Uses a magnetic interface to remove the device easier
High life cycle. It supports 50,000-300,000 reattachment life times
Easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68)
Support a high current (3A-20A), faster recharge
Excellent corrosion rating (48H-120H) meet the harsh environments
Shape customized to meet with product shape matching, improve product selling point
Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish the direction (It is user-oriented and user-friendly)
Excellent scalability interface, Can be achieved (Power Signal Video Audio Jack Etc)
Development time is short, low-cost mold for customization
Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic Connector Products Application:

Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones, Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection
Medical equipment, wireless equipment, data communications equipment, telecommunication equipment, Automation and industrial equipment, audio-visual equipment
Aviation, aerospace electronic, military communication
Automotive, car navigation, test and measurement equipment
Consumer Electronics (mobile phones, tablet computers, Bluetooth headsets, camera, watch, portable consumer electronic products and many other electronic fields)

Why UPE Shall Be Your Partner?

1. Specialized Expertise in Magnetic Connectors

Focused R&D: UPE has dedicated experience in magnetic connectors
Customization: UPE can tailor magnet strength, pin plating (gold/nickel for ≤50mΩ resistance), and housing materials (black PBT/nylon) to your needs

2. High Durability & Compliance

10,000+ Cycles Guaranteed: Their connectors likely undergo rigorous testing to meet your mechanical life demand
Certifications: Compliant with UL, or RoHS standards--critical for consumer/medical markets

3. Competitive Manufacturing

Cost-Effective Tooling: UPE may offer low MOQs (e.g., 1K-5K units) with competitive pricing for small-to-medium batches
Quality Control: In-house testing for contact resistance, pull force, and current load to ensure reliability

4. Fast Prototyping & Support

3D Samples in Days: Rapid prototyping for fit/function checks
Engineering Support: Assistance with pinout optimization, EMI shielding, or waterproofing (IP68)

5. Tailored Designs

Our in-house team of professional engineers collaborates closely with clients to develop fully customized magnetic pogo pin connectors tailored to your specific requirements.

6. Versatile Solutions

We design a wide range of magnetic connectors for diverse applications, ensuring optimal performance, durability, and seamless connectivity.

7. End-to-End Support

From concept to production, we provide end-to-end magnetic connector customization services, delivering solutions that meet exact industry standards and application needs.

How to Place Your Magnetic Cable Connector Order with UPE

1. Submit Your Requirements

Contact our sales team via:

Email: union@upetech.net
Phone: +86 13434524996
Online Form: www.pogopinsconnector.com

Provide details:

Application (e.g., medical, automotive, consumer electronics)
Connector type (e.g., magnetic pogo pin, charging cable)
Specifications (voltage, current, size, waterproof rating, etc.)
Quantity & lead time

2. Get a Custom Solution (If Needed)

Our engineers will review your needs and propose a custom design (if required). We'll share 3D models, samples, or technical drawings for approval.

Payment Term:

50% Deposit (Paid upfront): Covers production costs (materials, labor).

50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.

Payment Method:

T/T (Bank Transfer)
PayPal
OCBC Bank

Recommendation:

Use PayPal for samples (safer)
Use T/T for bulk orders (lower fees)

Sample Lead Time:

Inventory sample 2-3 Working day / customized sample 5-7 Working day

Production Lead Time:

10-15 Working day

Made For:

America, Europe, Asia, South African

Trade Term:

EXW

Freight:

Air, Sea, Express

Service:

High quality with reasonable price, OEM service, any special size, color, designs are acceptable
