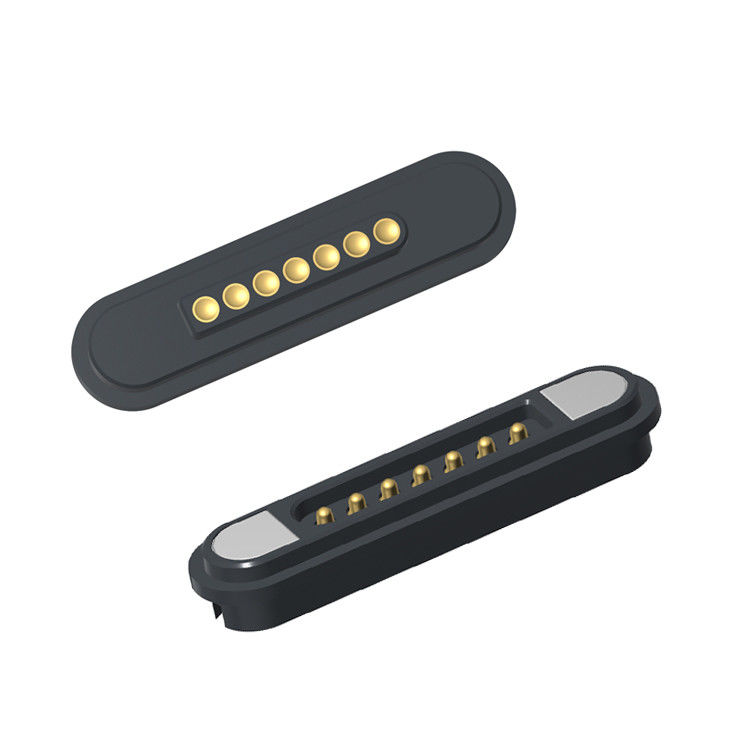

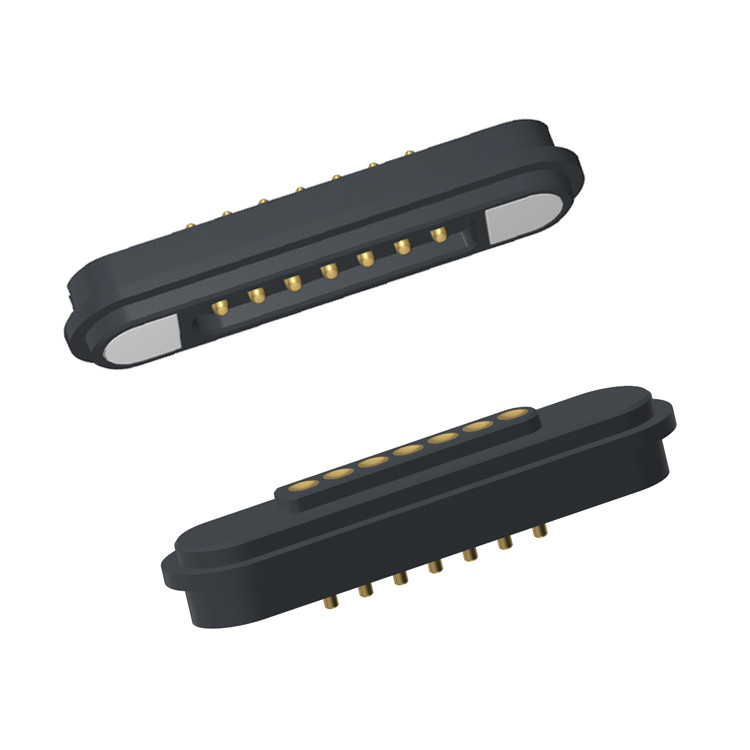

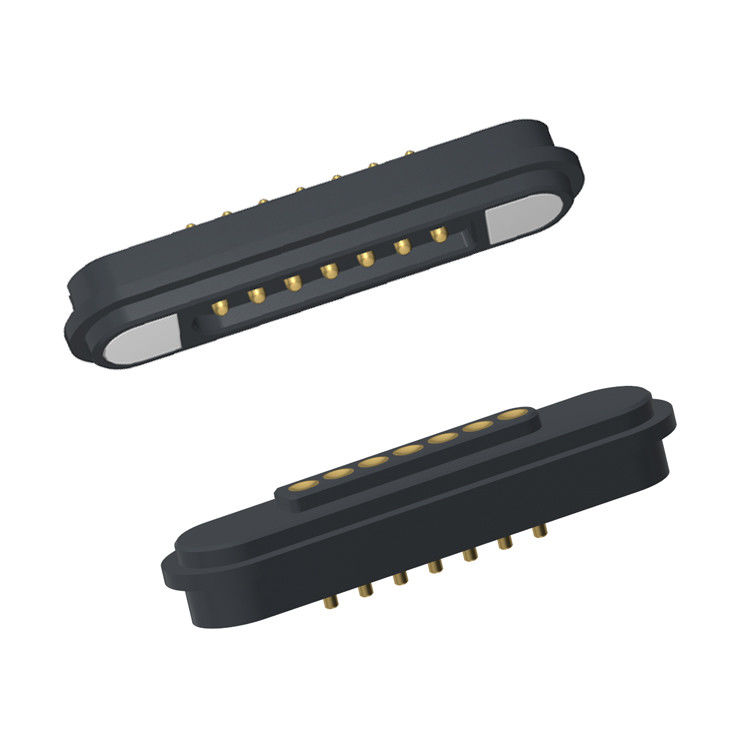

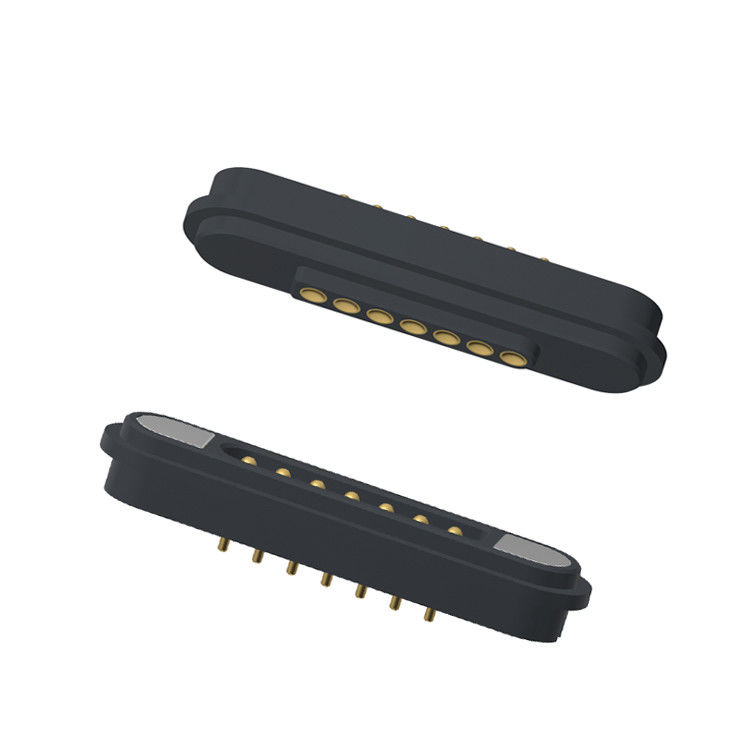

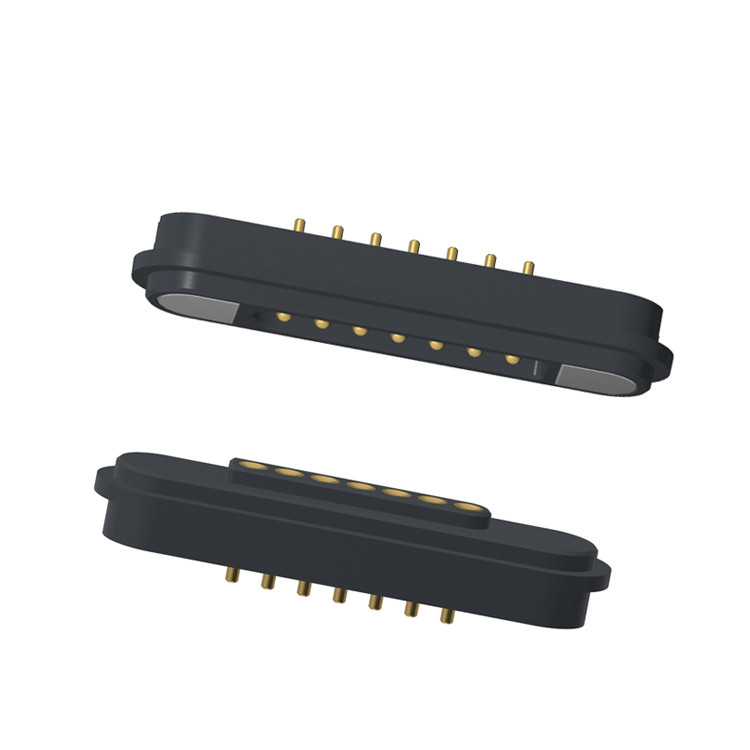

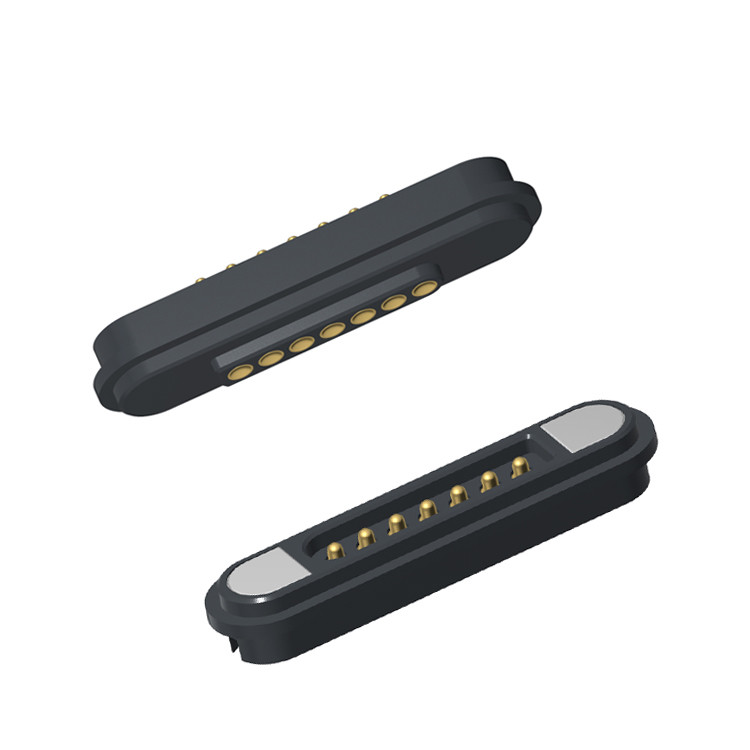

Spring Load Magnets Connector Pitch 2.2 MM Male Female 7 Pin Magnetic Pogo Pin Connector

Spring Load Magnets Connector Pitch 2.2 MM Male Female 7 Pin Magnetic Pogo Pin Connector.

UPE – Professional Magnetic Connector & Cable Solutions Manufacturer

Customized Design | Reliable Performance | End-to-End Solutions

At UPE, we specialize in designing and manufacturing high-quality magnetic connectors and magnetic cable connectors, tailored to meet your specific requirements. With our in-house team of expert engineers and designers, we deliver innovative, precision-engineered solutions for diverse industries, including consumer electronics, medical devices, IoT, and industrial applications.

To ensure the contact mechanical life of the pogo pin, NEVER compress it beyond the defined working stroke specified in the drawing. Over-compression can damage the internal spring, leading to reduced performance or failure.

Materials:

Housing: Black HTN UL94V-0,HTN (High-Temperature Nylon),UL94V-0 Flame-Retardant

Pogo Pin: Brass C6801 Plating Au 0.125um,High Conductivity, Corrosion Resistance
Female pin: Brass Plating Au 0.125um
Male magnetic connector magnet: N52 NdFeB Plating Ni Cu Ni Appearance surface N-pole,N52 NdFeB Plating Ni Cu Ni Appearance surface S-pole

Female magnetic connector magnet: N52 NdFeB Plating Ni Cu Ni

Mechanical:

Contact force:80g±20g at 1.0mm working storke

Full storke: 1.2mm

Male and female adsorption Life test: 10,000cycle

Electrical:

Rated voltage:DC12V; Rated voltage: 3AMax.

Contact resistance of spring pin: 50 milliohm Max.

Environmental performance:

Temperature tolerance:260℃

Operation Temperature: -25℃ to +80℃

Environmental Test: Salt Spray 48 hours

7Pin Male Magnetic Connectors & Female Magnetic Connector Parameter:

7Pin Male Magnetic Connector Technical Drawing

7Pin Female Magnetic Connector Technical Drawing

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)

Why UPE shall be your partner?

1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
7. Product environmental standards

How to Place Your Magnetic Connector Order with UPE

1. Submit Your Requirements
Provide details such as:

.Connector type (power, data, hybrid, waterproof, etc.)

.Voltage & current ratings

.Cable length & specifications

.Magnetic polarity & alignment preferences

.Quantity & lead time

Special requirements (IP rating, shielding, certifications, etc.)

. Option 1: Fill out our RFQ (Request for Quote) Form on our website.
. Option 2: Email your specs directly to sunion@upetech.net (or your designated contact).

2. Receive a Custom Quote
Our engineering team will review your requirements.

We’ll provide a competitive quote, including:Pricing/Lead time/Prototyping options (if needed)

3. Approve & Confirm Order
Once the quote is approved, we’ll finalize the design & production schedule.

For new designs, we may offer 3D models or samples for testing.

4. Production & Quality Assurance
UPE manufactures your order with strict quality control checks.

We can provide test reports & certifications upon request.

5. Fast Delivery & Support
Your order ships via your preferred logistics method (DHL, FedEx, sea freight, etc.).

Our team remains available for technical support & future orders.

Payment Term:

50% Deposit (Paid upfront): Covers production costs (materials, labor).

50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.

Payment method:

T/T (Bank Transfer),PayPal ,OCBC Bank

Recommendation:

Use PayPal for samples (safer).

Use T/T for bulk orders (lower fees).

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
