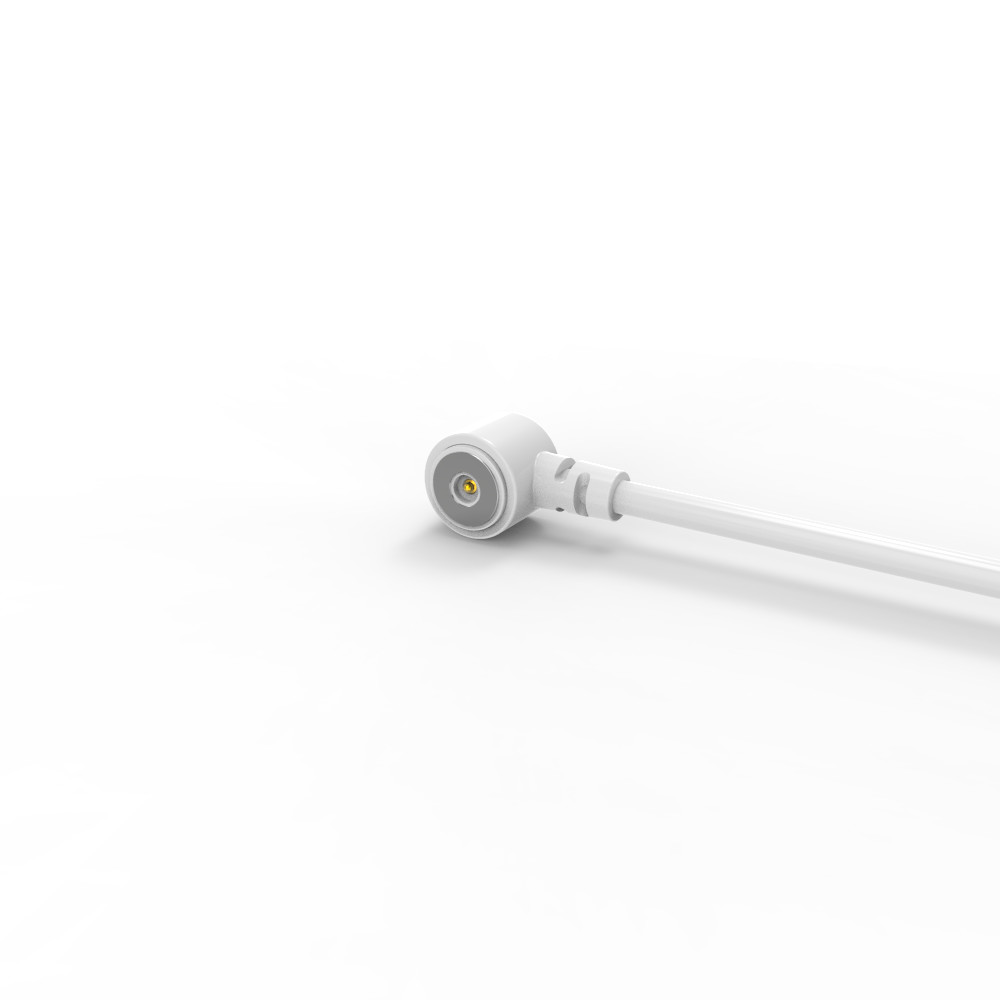

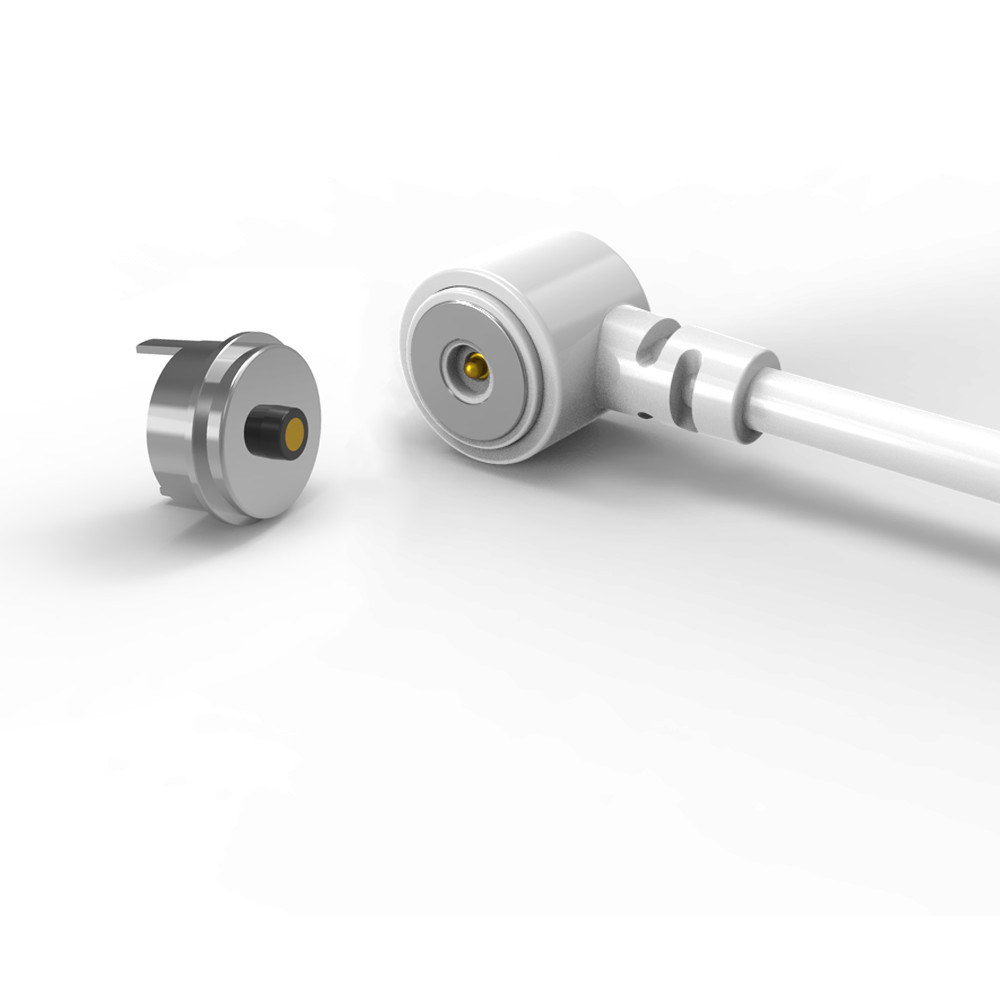

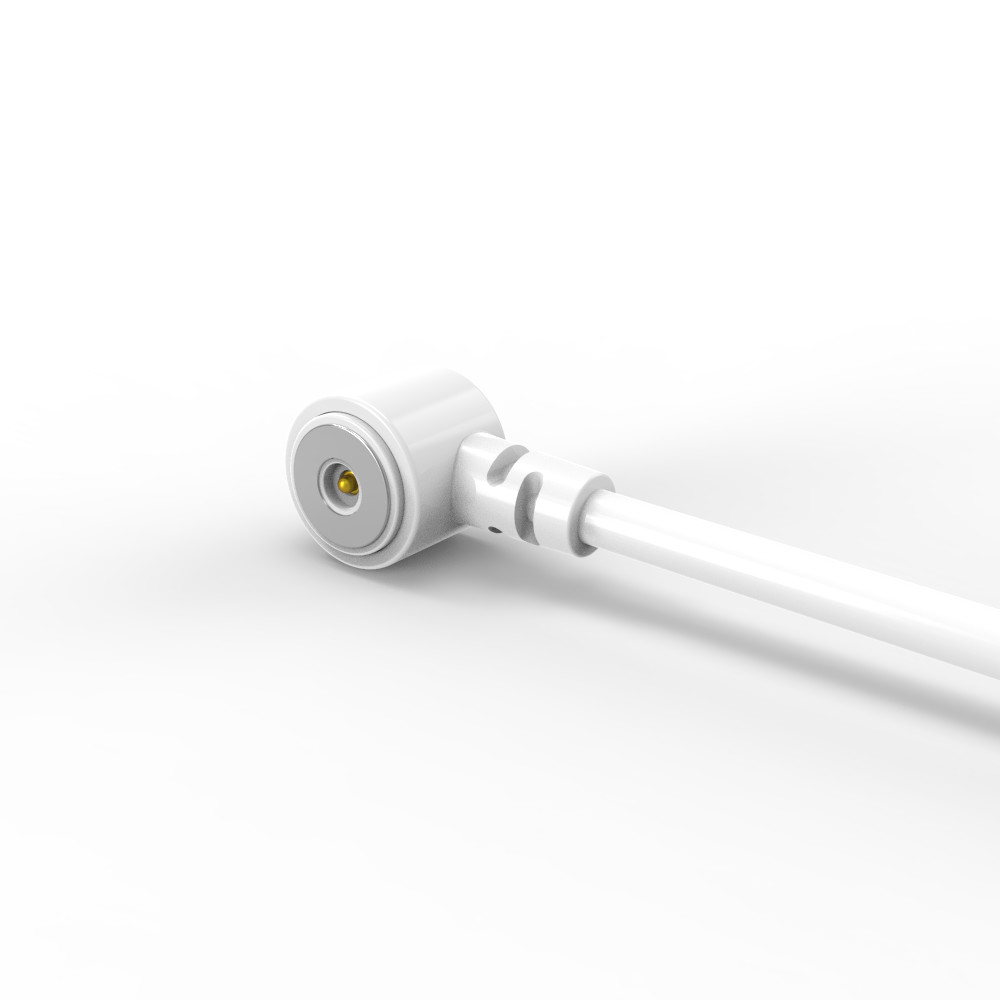

Customized male and female magnetic usb charging cable for tablet computer

Customized male and female magnetic usb charging cable for tablet computer.

UPE is professional magnetic connector & magnetic cable connector manufacturer.

UPE company as a professional global manufacturer, we deliver uniquely designed magnetic solutions engineered to meet precise customer requirements. Our products feature a compact, precision-engineered form factor. Utilizing magnetic pogo pins, they ensure excellent electrical conductivity and superior corrosion resistance, even in demanding environments.

The products are mainly sold to Europe, the United States, Canada, Australia, and developed countries and regions in Asia.

Male magnetic cable connector:

...Materials:
Pogo Pin: Brass(Plunger&Barrel plating 5U" Min Au over 60~100U"Ni);
Housing: White LCP+30%GF UL94 V-0;
Magnet:NdFeB N52 Plating Ni;
Cable:black OD 3.00*2C(TC43*0.08),
Wire Jacket:black TPE 90A .
Connector Jacket: WhiteTPE 90A..
...Mechanical:
Spring force:60g±10g,at 0.4mm working storke.
Full storke:0.6mm.
Mechanical life:10000cycle Min..
...Electrical:
Voltage:12 V.
Current:2A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48 H.

Female magnetic connector:

..Materials :
PINr:Lead-free C6801,plating 5U" Min Au over 60~100U"Ni;
Housing: White LCP+30%GF UL94 V-0;
Shell: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
....Electrical:
Voltage:12.0 V.
Current:5.0A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACHcompliant product.
...Salt spray test:48H.
...& Key inspection dimension.
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

Circular 2Pin Magnetic Cable Connectors Parameter:

Circular 2Pin  Cable Connector Technical Drawing

Circular 2Pin  Female Magnetic Connector Technical Drawing

Recommended pcb layout

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's  application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

●Space-saving female connectors and PCB adapters can achieve pogo type and SMT DIP patch cord connections

●The excellent corrosion resistance grade (48H-120H) meets the requirements for use in harsh environments

●Excellent expandable interfaces, which can implement (Power Signal, Video Audio, Jack, Etc.)

●The development time is short, the mold-making cost is low, and it is suitable for customization

Products application:

1.Aerospace, medical devices, automotive on-board electronics, small household appliances, automated industrial equipment, data communication equipment, industrial inspection equipment, wireless devices, track-moving intelligent vehicles
2: Virtual reality devices (VR), unmanned aerial vehicle devices, intelligent robot devices
3: Smart wearable products, smart positioning products (children's smartwatches, smart bracelets, wearable mobile phones, Bluetooth headphones, etc.)
4: Smart home devices, smart handheld terminal devices, smart sanitation equipment, smart outdoor sports equipment, smart physiotherapy and beauty devices
5: Consumer electronics, small household appliances (printers, smart phones, computers, cameras, audio-visual equipment, PDA)

Why choose us ?

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

How to place the magnetic cable connector order

Step 1: Submit Your Requirements
Provide these key details:

✅Connector Type: e.g., Charging-only, Data+Power (USB-C/HDMI), Pogo Pin, Hybrid

✅Quantity: Estimated annual volume (e.g., 50K units/year)

✅Customization Needs:
.Shape/size (e.g., circular Ø5mm, right-angled)
.Current rating (e.g., 8A fast charging)

.IP rating (e.g., IPX8 waterproof)

.Signal type (e.g., USB 2.0 + 12V power)
Aesthetic (color, branding, surface finish)

✅Technical Specs: Operating voltage, mating cycles, operating temperature range

Step 2: Quote & Agreement
UPE provides:
.Unit pricing (volume discounts for 5K+ orders)
.Lead time (prototyping + mass production)
.Payment terms (e.g., 50% deposit, 50% pre-shipment)

Finalize: MOQ, delivery schedule, packaging

Step 3: Confirm Order & Pay
Sign a PO or formal order agreement

Pay securely via:
.Bank Transfer (SWIFT/TT)
.PayPal
.Letter of Credit (for bulk orders)

Step 4: Production & Shipping
✅Prototyping: 5-7 days (sample approval before mass production)

✅Mass Production: 15-20 days (flexible scaling)

Shipping:
.EXW
.Trackable logistics (DHL, FedEx, sea freight)

Step 5: Quality Assurance
✅Pre-shipment: UPE provides QC reports (IP testing, continuity checks)

✅Post-delivery: Inspect for:
.Dimensional accuracy
.Signal/power performance
.Finish consistency
