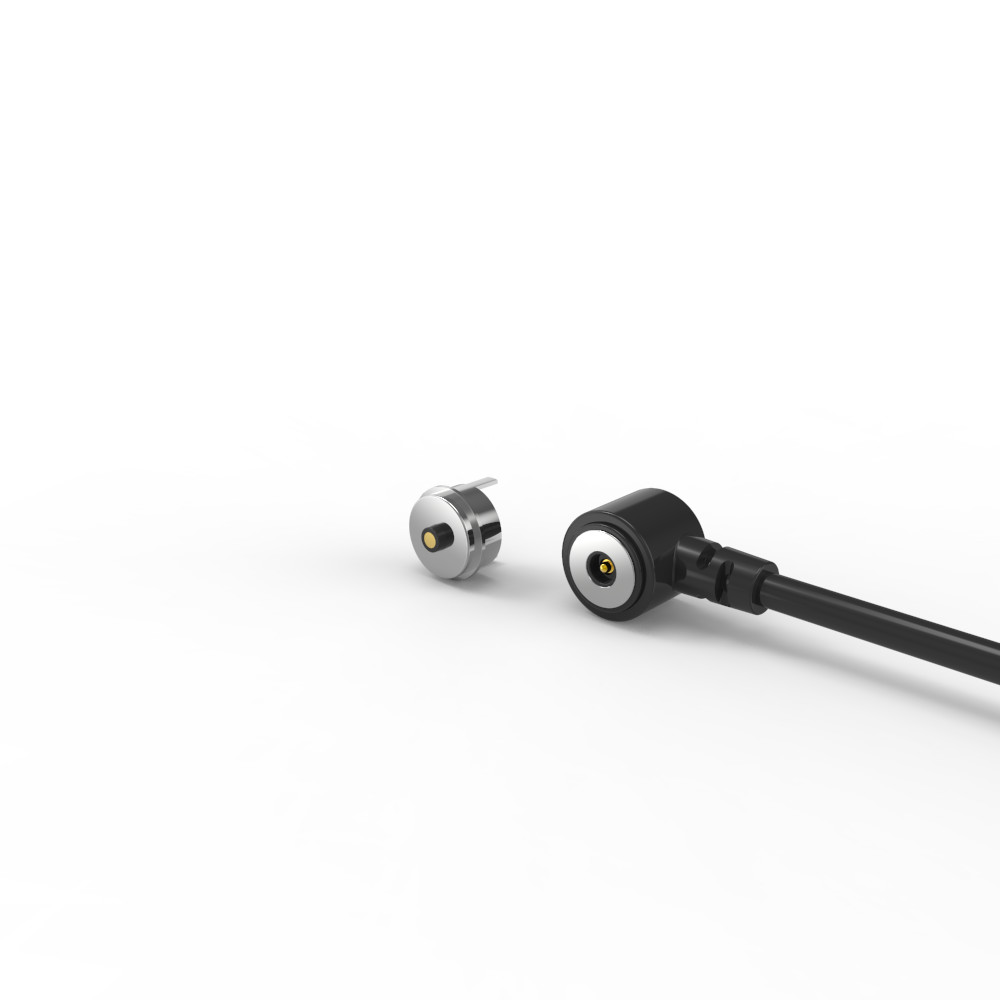

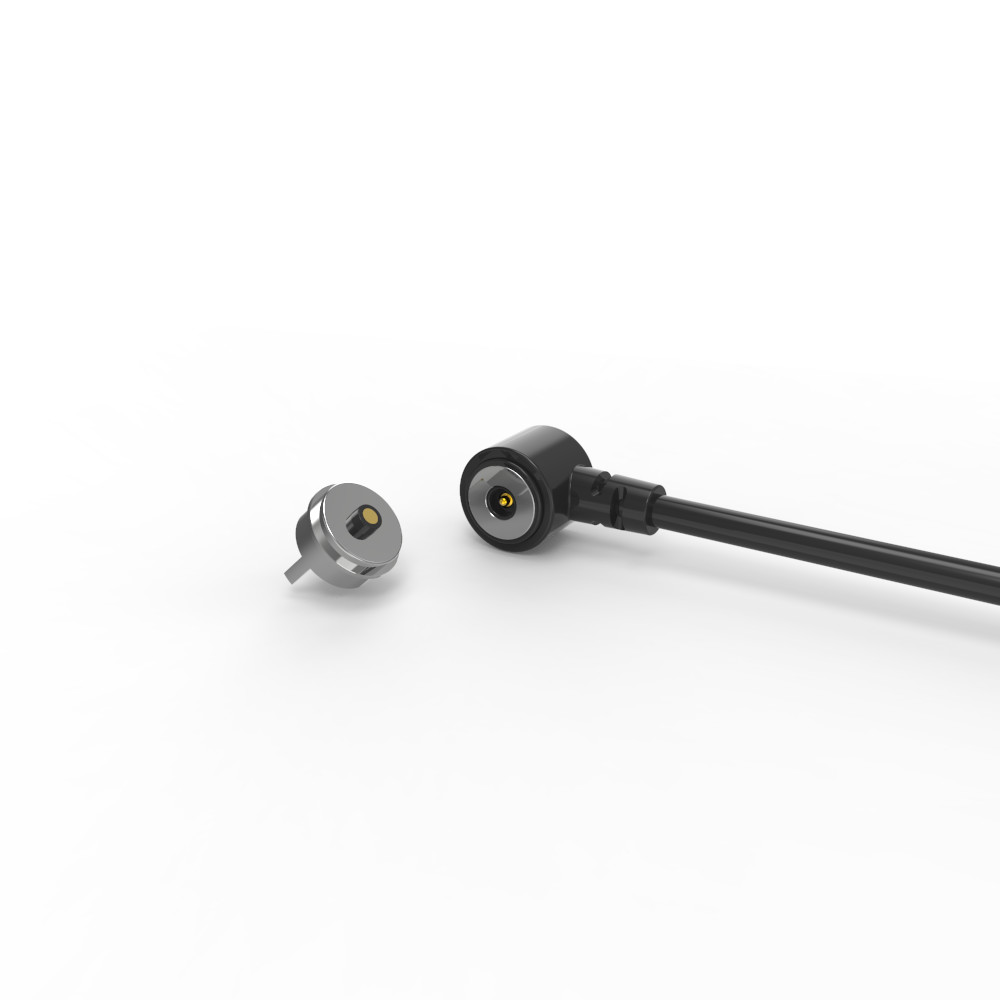

NdFeB N52 round male & female magnetic power connector for gloves

NdFeB N52 round male & female magnetic power connector for gloves.

Union Precision Electronic Co.,Ltd (UPE)  is committed to high-end Pogo Pin,Pogo Pin connectors,magnetic connector and the design, development, production and sales of supporting products as a high-tech company.

We have been adhering to continuous technological innovation and high-quality products as the core of the company's development, a professional and experienced technical team has more than 15 years of experience in the relevant connector industry.UPE have many years of work experience in product development and manufacturing.UPE ensure product quality during product design, development and manufacturing. At the same time, it can also provide customers with technical support such as synchronous development.

Products comply with EU ROHS, REACH, HF environmental protection standards.

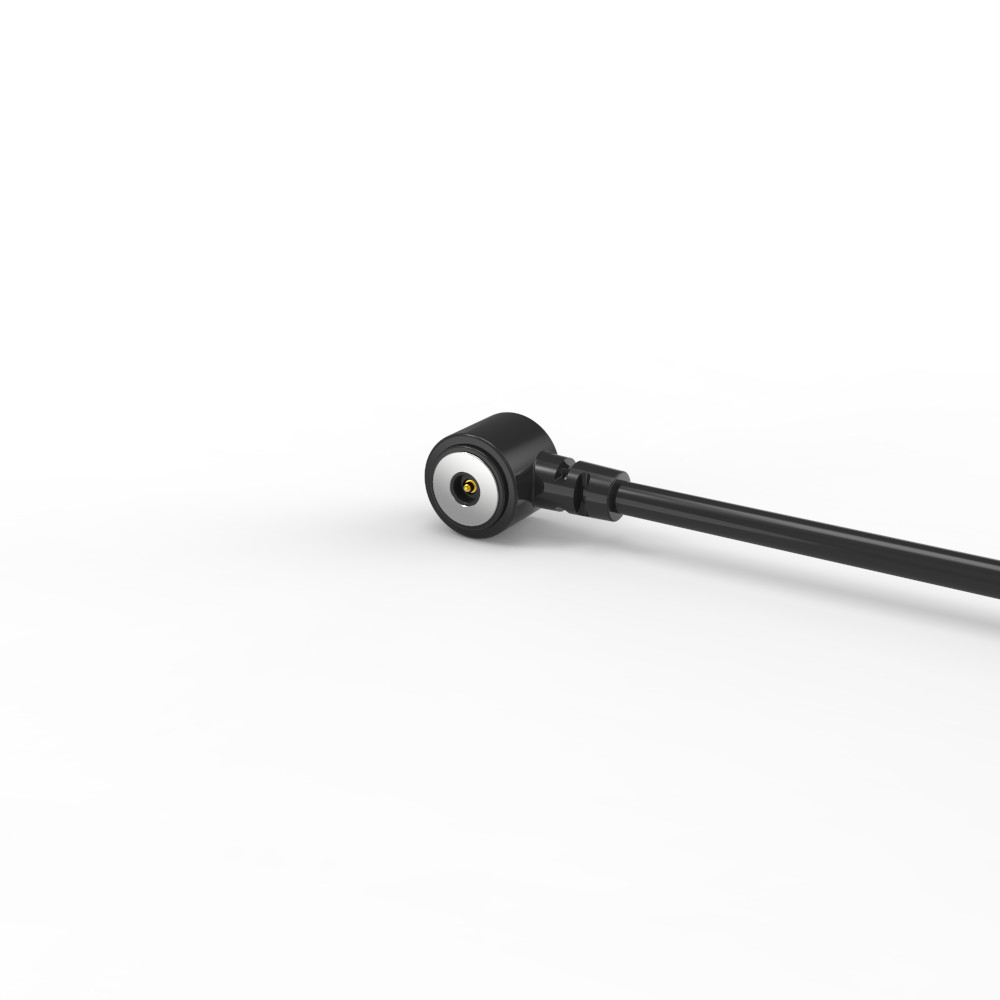

Male magnetic cable connector:

...Materials:
Pogo Pin: Brass(Plunger&Barrel plating 5U" Min Au over 60~100U"Ni);
Housing: black HTN+30%GF UL94 V-0;
Magnet:NdFeB N52 Plating Ni;
Cable:black OD 3.00*2C(TC43*0.08),
Wire Jacket:black TPE 90A .
Connector Jacket:black TPE 90A..
...Mechanical:
Spring force:60g±10g,at 0.4mm working storke.
Full storke:0.6mm.
Mechanical life:10000cycle Min..
...Electrical:
Voltage:12 V.
Current:2A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48 H.

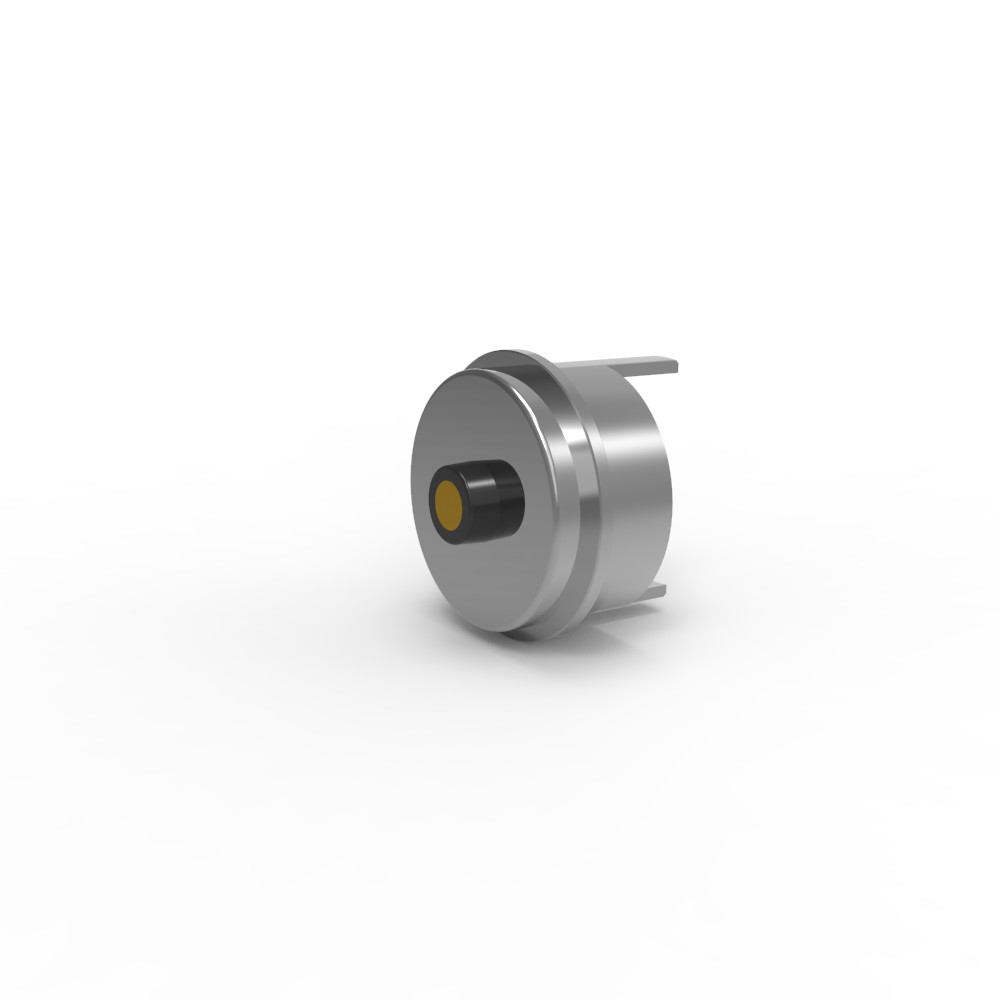

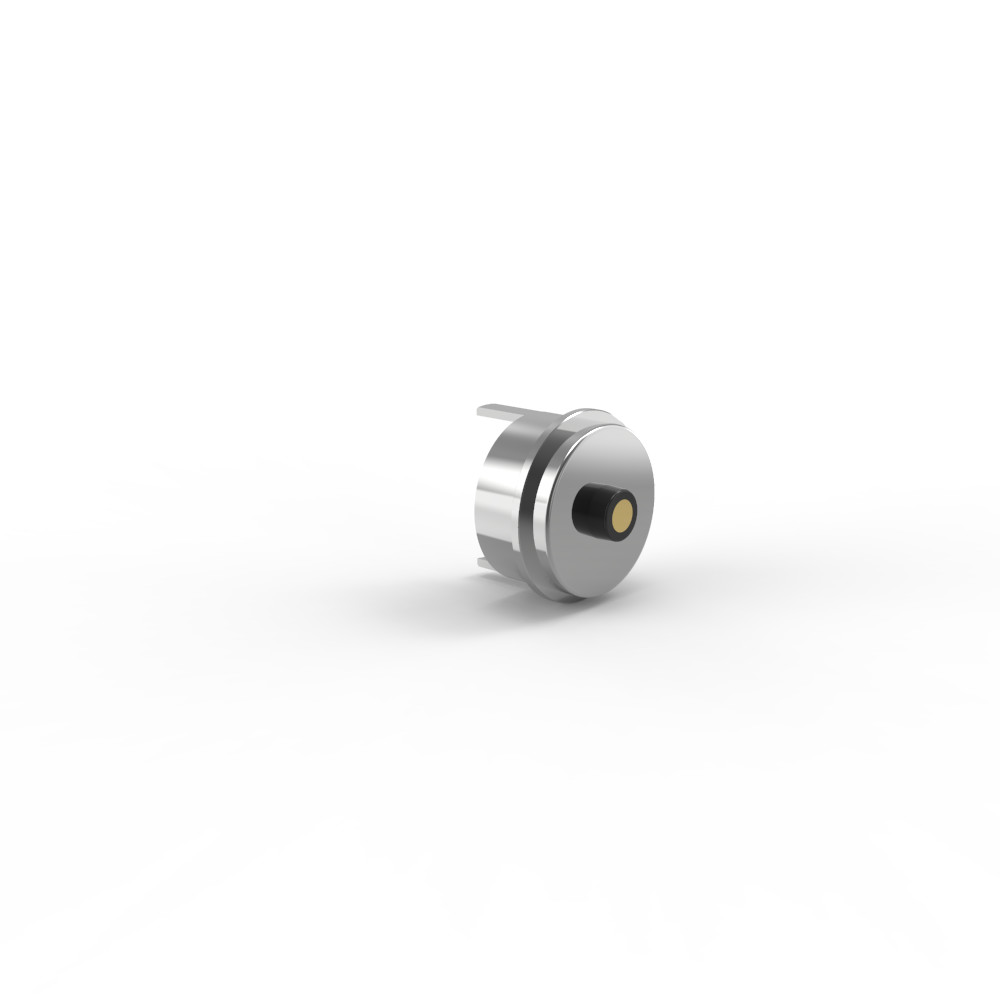

Female magnetic connector:

..Materials :
PINr:Lead-free C6801,plating 5U" Min Au over 60~100U"Ni;
Housing: Black HTN+30%GF UL94 V-0 ;
Shell: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
....Electrical:
Voltage:12.0 V.
Current:5.0A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACHcompliant product.
...Salt spray test:48H.
...& Key inspection dimension.
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

 Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature,broken,same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection

Circular 2Pin Magnetic Cable Connectors Parameter:

Circular 2Pin  Cable Connector Technical Drawing

Circular 2Pin  Female Magnetic Connector Technical Drawing

Recommended pcb layout

Advantages of Magnetic Connector:

1.Effortless User Experience

.Automatic Adsorption: Connects easily with a simple "snap" action – no precise alignment needed.

.Anti-Fall Safety: Detaches cleanly under tension (e.g., tripping on the cable), protecting devices from damage.

2.Exceptional Durability

.High Cycle Life: Rated for 100,000–200,000 connect/disconnect cycles – far exceeding standard connectors.

.Robust Design: Reinforced structure resists physical stress and frequent use.

3.Environmental Resilience

.IPX8 Waterproofing: Device-side (female) port withstands submersion (ideal for wearables, medical gear, outdoor devices).

.Dust Resistance: Sealed design prevents particle ingress.

4.High-Performance Power Delivery

.Fast Charging Support: Handles 5A–10A currents, enabling rapid charging for power-hungry devices.

.Low Resistance: Optimized for efficient high-current transmission with minimal energy loss.

5.Design Flexibility

.Customizable Aesthetics: Shape, color, and branding tailored to match host devices (e.g., wearables, IoT gadgets).

.Form Factor Adaptability: Can be designed for ultra-slim profiles or specialized enclosures.

6.Enhanced Safety

.Anti-Short Circuit: Built-in protection against accidental shorts during connection/misalignment.

.Foolproof Polarity: Physical design prevents incorrect insertion (reverse polarity protection).

7.Advanced Signal Capability

.High-Speed Data: Supports USB 2.0, HDMI 1.3, audio/video signals – replacing traditional ports without compromising function.

.Signal Integrity: Maintains stable transmission for video/audio even with frequent disconnects.

Product application areas are:

1. Industrial equipment, three-proof machine, communication equipment, medical equipment, handheld terminal equipment;

2. Smart wearable devices, smart education, smart positioning devices, smart toys;

Consumer electronics, tablet computers, shared charging, TWS Bluetooth headsets, electronic

3.Aerospace, medical devices, automotive on-board electronics, small household appliances, automated industrial equipment, data communication equipment, industrial inspection equipment, wireless devices, track-moving intelligent vehicles
4. Virtual reality devices (VR), unmanned aerial vehicle devices, intelligent robot devices
5. Smart wearable products, smart positioning products (children's smartwatches, smart bracelets, wearable mobile phones, Bluetooth headphones, etc.)
6. Smart home devices, smart handheld terminal devices, smart sanitation equipment, smart outdoor sports equipment, smart physiotherapy and beauty devices
7. Consumer electronics, small household appliances (printers, smart phones, computers, cameras, audio-visual equipment, PDA)
